Liebert® NXL
Provides reliable power protection and advanced technology for high power applications. Offers excellent dynamic performance, with the ability to handle virtually any input condition while still providing computer grade output to critical loads.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Specifications
Please click on the models below for more information, manuals and technical specifications. Liebert® NXL™ uninterruptible power supply (UPS) provides reliable data center power protection and advanced technology for high power applications. This UPS adds dynamic performance to data center design, handling virtually any input condition while still providing computer-grade output to critical loads. The Liebert® NXL™ UPS is available in both single module and multi-module systems. Capacities include 250, 300, 400, 500, 625, 750, and 1100 kVA. Unity Power Factor as well as 0.9 PF load ratings are available. Voltages include 480, 575, and 600. Matching battery cabinets and maintenance bypass cabinets provide a complete power protection solution. Compatible with Lithium Ion battery systems.
UPS protection for medium and large facilities Single and multi-module systems with latest generation technology Color touch-screen controls Matching battery cabinets and maintenance bypass cabinet
|
NXL 1100 kVA
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 1100 kW | 480 / 575 / 600 Volts | 480 / 575 / 600 Volts | Up to 94% | 3 or 4 wire | 78.7 in | 228.3 in | 47.2 in | 21,800 lbs |
| See more product information | ||||||||
|
NXL 800 kVA
|
||||||||
| 800 kW | 480 Volts | 480 Volts | Up to 94% | 3 or 4 wire | 78.7 | 184.8 | 47.2 | 16,120 |
| See more product information | ||||||||
|
NXL 250-400 kVA
|
||||||||
| 225-360 kW | 480 / 575 / 600 Volts | 480 / 575 / 600 Volts | Up to 94% | 3 or 4 wire | 76.8 | 78.5 | 33.5 | 3965 - 5250 |
| See more product information | ||||||||
|
NXL 625 kVA / 562.5 kW
|
||||||||
| 562.5 kW | 480 Volts | 480 Volts | Up to 92% | 3 or 4 wire | 76.8 | 140.5 | 39.4 | 13,200 |
| See more product information | ||||||||
|
NXL 750 kVA / 675 kW
|
||||||||
| 675 kW | 480 / 575 / 600 Volts | 480 / 575 / 600 Volts | Up to 92% | 3 or 4 wire | 76.8 | 140.5 | 39.4 | 13,200 |
| See more product information | ||||||||
|
NXL 625 kVA
|
||||||||
| 625 kW | 480 / 575 / 600 Volts | 480 / 575 / 600 Volts | Up to 92% | 3 or 4 wire | 76.8 | 140.5 | 39.4 | 13,200 |
| See more product information | ||||||||
|
NXL 500 kVA / 450 kW
|
||||||||
| 450 kW | 480 Volts | 480 Volts | Up to 92% | 3 or 4 wire | 76.8 | 111.6 | 39.4 | 9450 |
| See more product information |

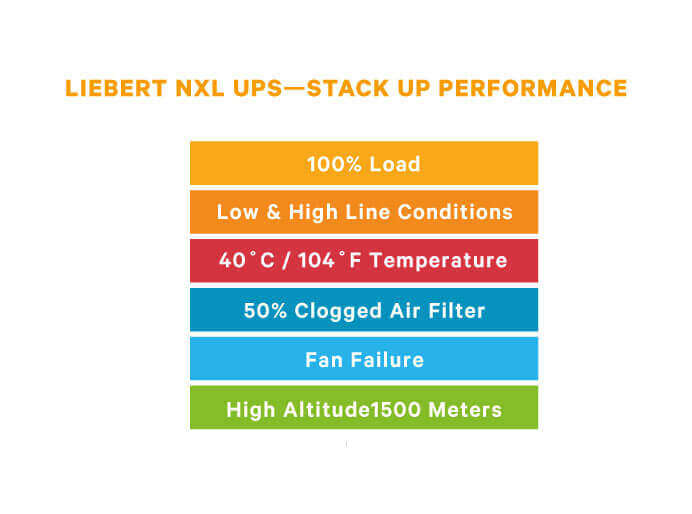

Benefits
Features
- Liebert® NXL Operation and Maintenance Manual (SL-25425)
- Liebert® Large System 3-Phase UPS Battery System Installation Manual (SL-25418)
- Liebert® NXL System Control Cabinet Operation Manual (SL-25514)
- Liebert® Battery Interface Box Product Specs/Installation Sheet (SL-25515)
- Liebert® NXL Power-Tie Controls Installation Manual
- Liebert® NXL Power-Tie Controls Manual (SL-25521)
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
