Product Family

NetSure 7000 Series for Core / Edge

The NetSure 7000 Series of DC power systems is ideal for applications ranging from radio base stations and small offices to large office and data center facilities requiring high power efficiency, reliability and system availability in a small footprint.

Get Brochure
Best Suited For:
  • Telecom
  • Data Center/Colocation/Hosting
  • Government

Model Specifications Overview

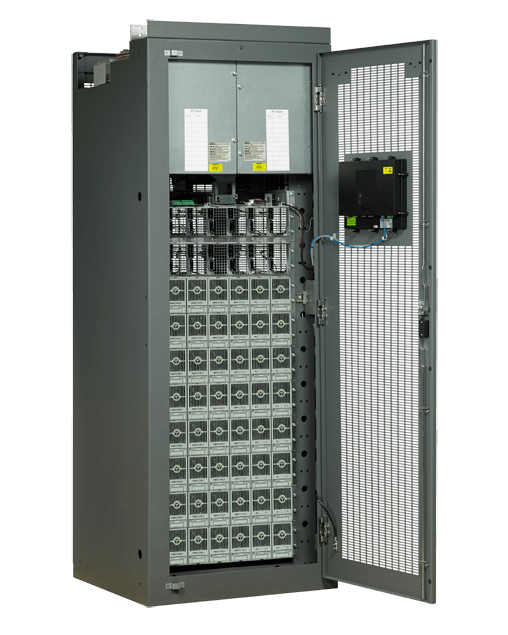

NetSure 7200 Series
600 kW   12,000 A   -48 VDC   208/240 or 277/480 VAC   Cabinet   84"   30"- 240"   30"   975-1225 lbs

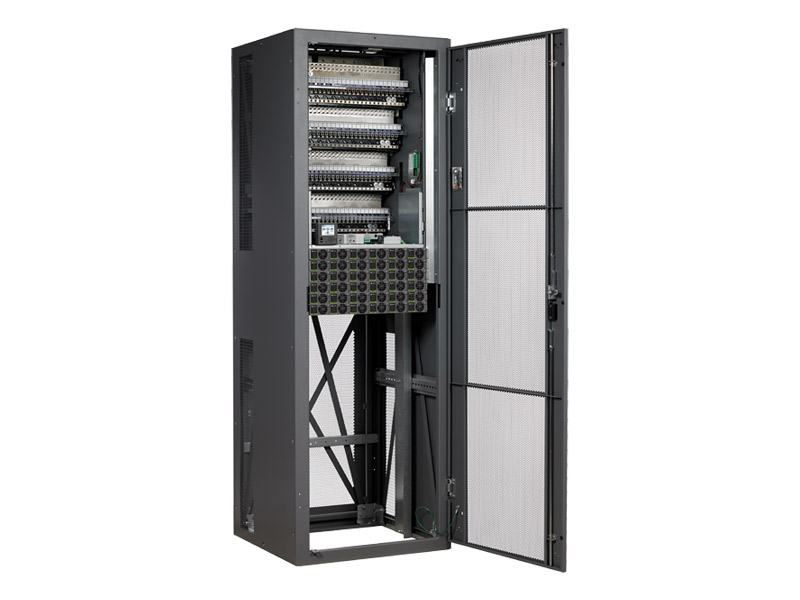

NetSure 7100 Series
600 kW (6 bays)   12,000 A (6 bays)   -48 VDC, +24 VDC, -58 VDC   208 VAC to 277/480 VAC   Cabinet or Relay Rack   84"   23" to 28"   20.1" to 28"   200 to 650 lbs.

Benefits

Optimized total cost of ownership
Safe and simple to install and operate
Enhanced real-time visibility into what's powering your network
Includes DHCP Ethernet connection and local access via an additional port with a default IP address
Meets strict agency standards for safety and reliability

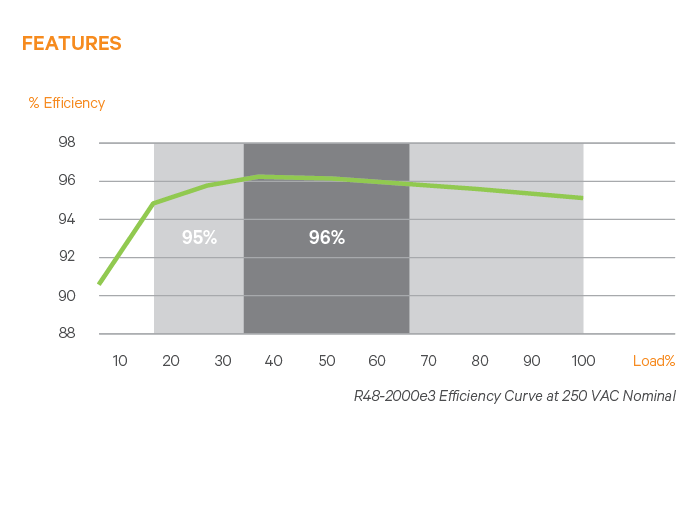

Reduce energy cost with high-efficiency eSure rectifiers
Low initial investment with scalable  configuration that allows for incremental system growth
High reliability with N+1 configuration redundancy

Features

Advanced controller offers battery management, AC service monitoring, site monitoring and configuration management
Remote access supports HTTPS with multiple browsers, network element management via Modbus or SNMP (v2 or v3)
Dual Ethernet port option
Modular design with hot-swappable rectifiers and distribution units
High system efficiency over 96%

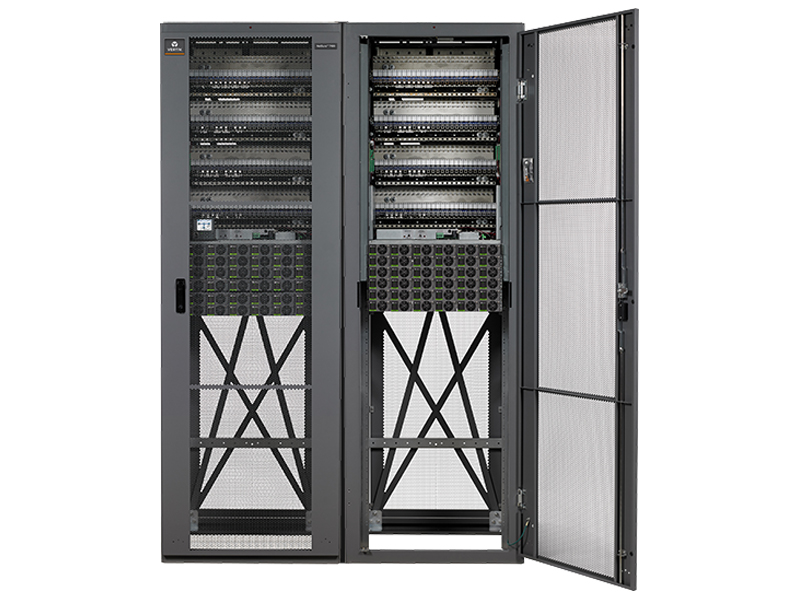

Multi-bay configurations
Multiple AC input configurations
NEBS Level 3 certified and UL Listed to UL subject 1801

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
