Product Family

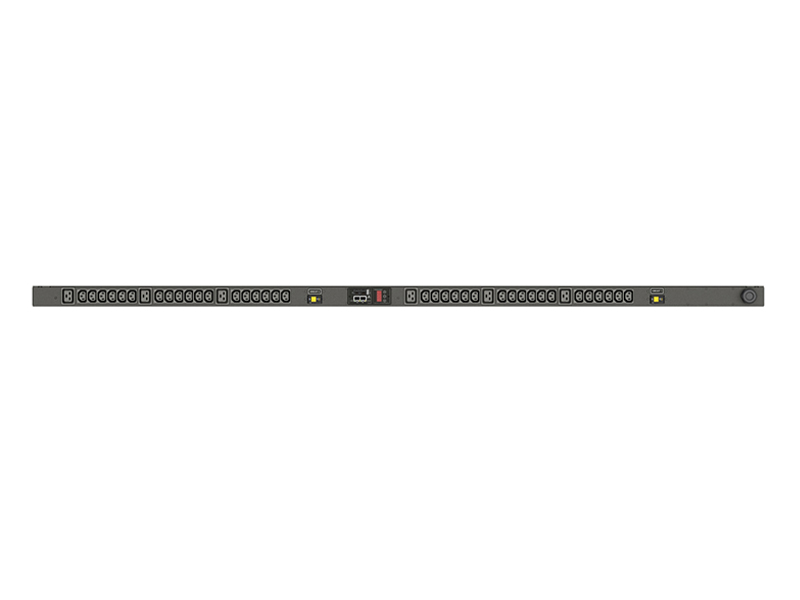

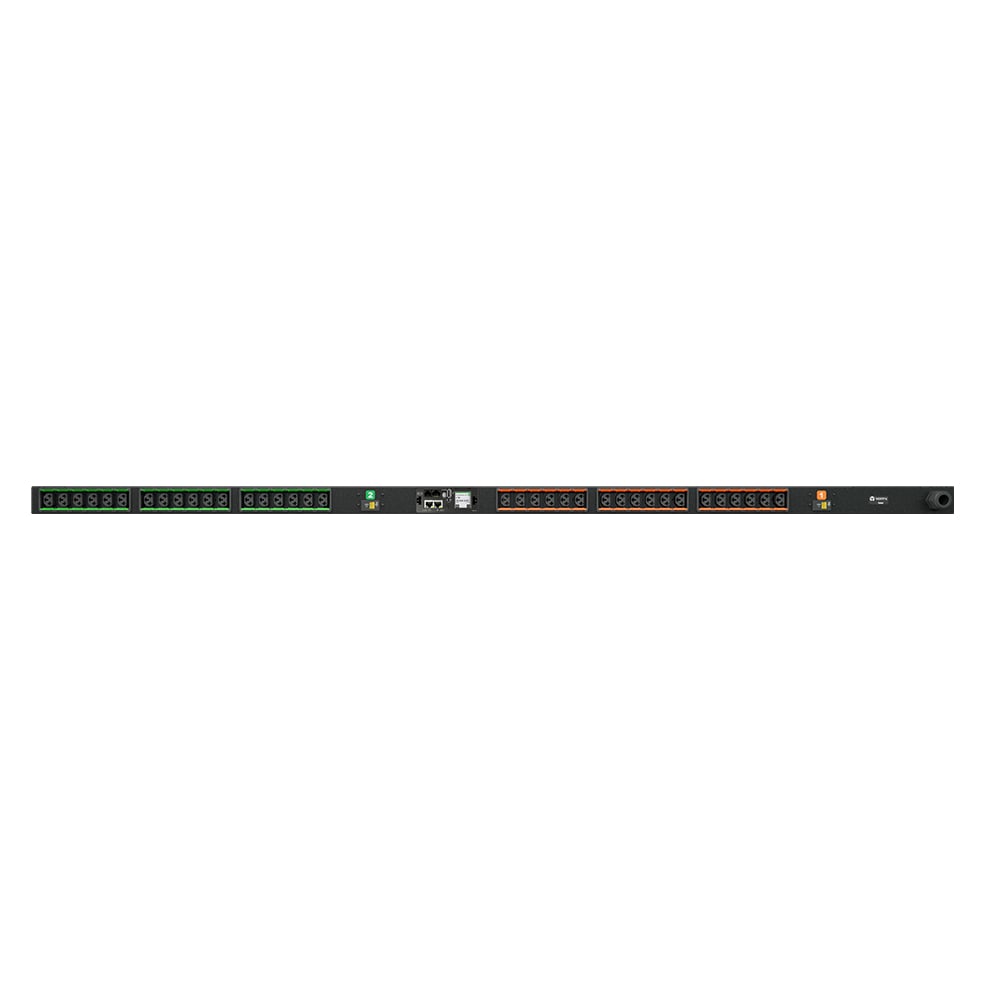

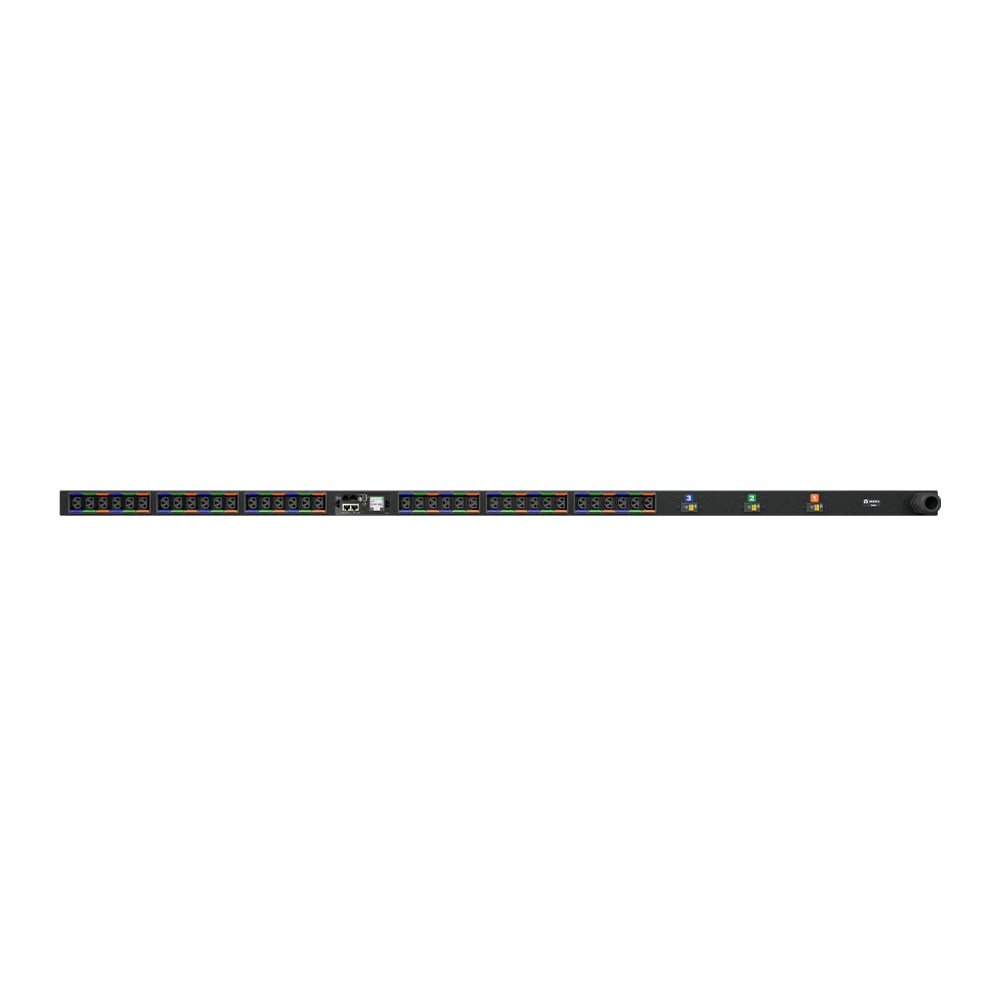

Vertiv Geist Monitored Rack PDU

Vertiv Geist Monitored rack PDUs (rPDU) provide a comprehensive view of power usage, both at the rack and via remote access while continuing to provide reliable power distribution to critical IT equipment. Monitored rPDUs are available in a variety of electrical and receptacle configurations. Every unit is 100% tested for reliability and functionality.

Get Brochure Get Manual
Login to Save for Later
Warranty: Vertiv Geist Monitored rPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.

Model Specifications Overview
Email
VP4551V
60A   208V DELTA   208V   (12) U-Lock C13 / (12) U-Lock C19   Rack
VP7811B
30A   208V   208V   (12) C13 / (4) C19   Rack
VP8830
20A   120V   120V   (24) 5-20R   Rack
VP8832
30A   120V   120V   (24) 5-20R   Rack
VP8841
30A   208V   208V   (36) C13 / (6) C19   Rack
VP8865
30A   120/208V WYE   120V & 208V   (36) C13 / (6) C19 / (2) 5-20R   Rack
VP8866
60A   208V DELTA   208V   (12) C13 / (12) C19   Rack
VP8867
60A   208V DELTA   208V DELTA   (30) C13   Rack
VP8868
35A   208V DELTA   208V DELTA   (36) C13 / (6) C19   Rack

Benefits

Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
Environmental monitoring capabilities ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
Upgrade your hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs without having to replace entire power strips.
U-Lock receptacles available on select units to secure power cords and avoid accidental disconnections.
Simplify circuit and phase balancing with color-coded receptacles available on select units.
Monitor power consumption at the outlet-level on select units for a detailed view of power distributed to specific equipment with the outlet level option.
Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app.
Every unit is 100% tested for reliability and functionality to ensure units function as designed.
North American units are UL listed in accordance with common data center and insurance provider requirements.
Standard three-year warranty, upgraded to five years with product registration.
Save time and money by pre-integrating Vertiv Geist rPDUs with the VR Rack. Contact your local sales representative to get started.

Features

Hot-Swappable and upgradeable monitoring device.
Local and remote power monitoring with accuracy of +/- 1% (ANSI & IEC Standards).
VLC (Visible Light Communication).
Environmental monitoring with the addition of optional sensors.
High Temperature Grade 60°C for high temperature environments.
Color-coded U-Lock receptacles by circuit for instant identification on select units.
Available in vertical and horizontal rackmount form factors.
Flexibility to meet a broad range of requirements, with a variety of electrical and receptacle configurations available.
Simple and quick installation in all standard racks or cabinets with included mounting brackets.
TAA Compliant
Manuals
Brochures and Data Sheets
Software
Warranties
Reports

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
