Product Model

NetSure 7100 Series

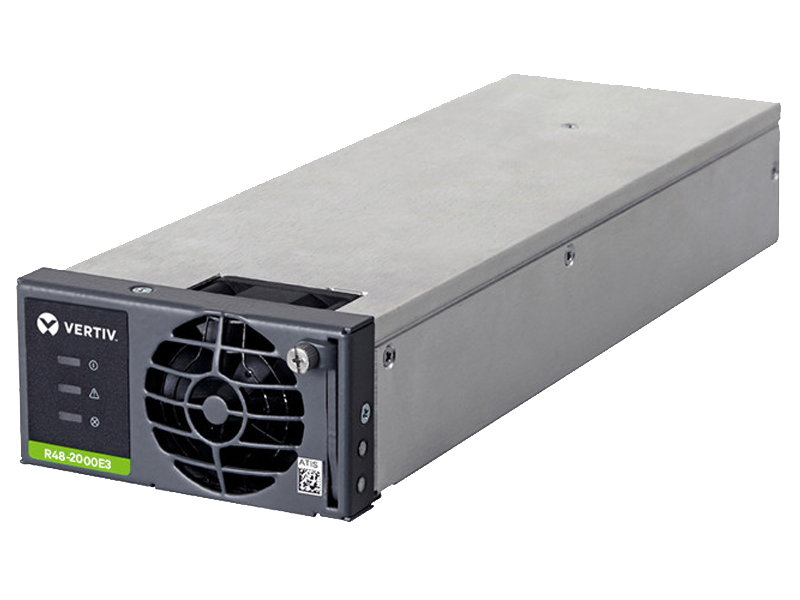

The modular NetSure™ 7100 Series power system with 3500 watt or 2000 watt rectifiers and DC to DC converters provides up to 12,000 amps of current for -48 volt systems with up to 520 amps at +24 volts or -58 volts. The basic components of the power system include the NetSure Control Unit (NCU), module mounting shelf assemblies which house the rectifiers and converters, and a modular distribution cabinet.

Get Brochure Get Manual

Best Suited For:

Data Center/Colocation/Hosting
Telecom

Product Model

NetSure 7100 Series

Get Brochure Get Manual

Best Suited For:

Data Center/Colocation/Hosting
Telecom

Benefits

Optimized total cost of ownership

Safe and simple to install and operate

Enhanced real-time visibility into what's powering your network

Includes DHCP Ethernet connection and local access via an additional port with a default IP address

Meets strict agency standards for safety and reliability

Reduce energy cost with high-efficiency eSure rectifiers

Low initial investment with scalable configuration that allows for incremental system growth

High reliability with N+1 configuration redundancy

Features

Advanced controller offers battery management, AC service monitoring, site monitoring and configuration management

Remote access supports HTTPS with multiple browsers, network element management via Modbus or SNMP (v2 or v3)

Dual Ethernet port option

Modular design with hot-swappable rectifiers and distribution units

High system efficiency over 96%

Multi-bay configurations

Multiple AC input configurations

NEBS Level 3 certified and UL Listed to UL subject 1801

Print Download Email

NetSure 7100 Series

Product Overview

Power Capacity: 600 kW (6 bays)

Current Capacity: 12,000 A (6 bays)

System Type: Cabinet or Relay Rack

Input

Input Voltage, Nominal: 208 VAC to 277/480 VAC

Input Voltage, Operational: 176 VAC to 305/528 VAC

Input Connections: Terminal Blocks or Line Cords

Equipment Dimensions (H x W x D): D Cabinet:12.2" (7RU) to 33.25" (19RU) x 23" x 20.1", R Shelves:1.7" (1RU) or 5.2" (3RU) x 23" x 20.1"

Access: Front for installation, operation and maintenance, Rear for multi-bay, rectifier shelf or battery tray expansion

Output

Output Voltage, Nominal: -48 VDC, +24 VDC, -58 VDC

Output Voltage, Operational: Rectifier: -42 VDC to -58 VDC; Converter: +24 VDC to +28 VDC or -56 VDC to -58 VDC

Output Capacity: Up to 2000 amps per bay at -48 VDC plus redundancy, maximum of six bays; Up to 520 amps at +24 VDC or -58 VDC plus redundancy

Peak Efficiency: Rectifier: 96.5%; Converter: 95% (+24 VDC or -58 VDC)

Load Circuit Breakers / Fuses: Up to (104) Bullet CBs, 1 to 300 A, Up to (24) GJ/218 CBs, 100 to 800 A, Up to (16) TPH Fuses, 70 to 600 A, Up to (16) TBL-B Fuses, 70 to 250 A

Physical Characteristics

Battery Circuit Breakers / Fuses: Up to (24) Bullet CBs, 1 to 300 A, Up to (4) GJ/218 CBs, 100 to 800 A, Up to (4) TPH Fuses, 70 to 600 A /up to 200A CB Disconnect mounted on each batt

Options: Low Voltage Load Disconnect, Low Voltage Batttery Disconnect, Battery Shunt, Battery Trays - Pre-cabled, Bulk Output Panel, Up to (68) Temp Sensors

Weight: 200 to 650 lbs.

Weight: 90.9 to 295.5 kg

Height: 84"

Height: 2134 mm

Width: 23" to 28"

Width: 584.2 to 711.2 mm

Depth: 20.1" to 28"

Depth: 510.5 to 711.2 mm

Environmetal & Standard Compliance

Control and Monitoring: Dual Ethernet, Embedded web pages, SNMP, Modbus, Battery Management, Programmable Relay Outputs and Binary Inputs, Energy Management

Operating Temperature: -40 °C to +40 °C (-40 °F to +104 °F)

Safety Compliance: UL 1801 Listed (“c UL”), NEBS Level 3

EMC Compliance: FCC Class B
