Product Model
Warranty:
2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

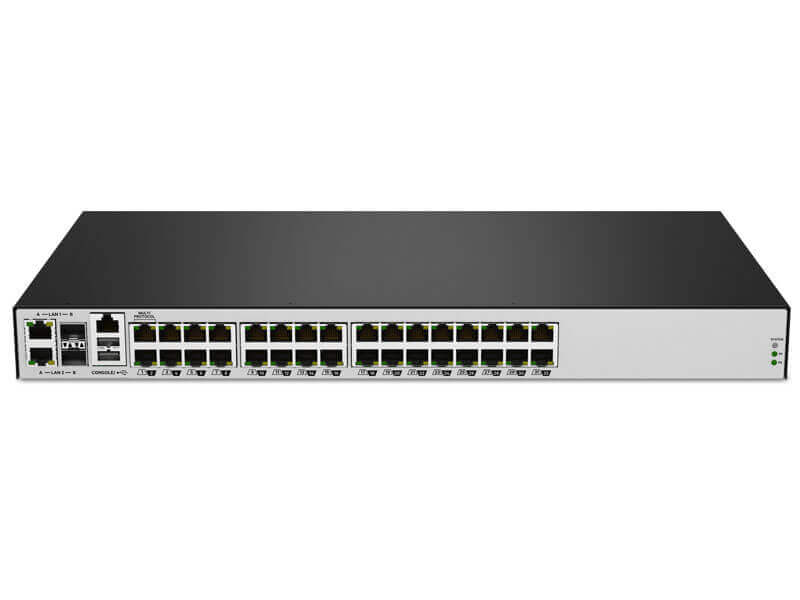

ACS 8032MDAC Serial Console
ACS 8000 32-Port ACS Dual AC w/analog V.92 modem
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Military, Defense, Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Power Generation
- Power/Gas Transmission and Distribution
- Retail and Wholesale
- Telecom
- Transportation
Product Model
Warranty:
2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available
ACS 8032MDAC Serial Console
ACS 8000 32-Port ACS Dual AC w/analog V.92 modem
Best Suited For:
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Military, Defense, Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Power Generation
- Power/Gas Transmission and Distribution
- Retail and Wholesale
- Telecom
- Transportation
Benefits
NEW! - Cellular option provides primary Out-of-Band or failover connectivity
Environmental sensor port gives visibility into onsite conditions
Access and troubleshoot remote locations using automatic network failover to cellular, Ethernet or analog modem
Strong dial-up and secure dial-back using optional built-in modem
Compliance with data center access and security policies via customizable, multiple access levels
No need for adaptors with automatic Cyclades™ and Cisco pin-out conversions
Integrated support for 1Gb SFP fiber modules 8 USB ports to support new IT equipment and external devices
Uses an embedded cryptographic module that is based on a FIPS 140-2 validated cryptographic module
Expanded support for Rack PDUs from Vertiv™, ServerTech, APC, Raritan & Eaton along w/ GXT4/5 UPS systems
Features
Fast, automated configuration with Zero-Touch Provisioning (ZTP)
In-band and out-of-band serial access to remotely manage IT devices anywhere in the world
Automatic gigabit ethernet or cellular failover
Customizable and preset security profiles
Regulatory compliance & easy troubleshooting – online & off-line data logging w/ time stamps
Specifications
ACS 8032MDAC Serial Console
- Product Overview
- Type
- Serial
- Input Ports
- 32 RS-232 serial, 8 USB 2.0, 4 digital
- Graphic Mode
- Internal Modem
- 1
- Service Processor support
- No
- Extension Distance
- N/A
- Cellular Support
- Yes, via external router
- Power Description
- Power Supply(s)
- 2
- Input Power (Maximum)
- 35W
- Interfaces/Ports
- Network Interface(s)
- 2 GB Fiber SFP, 2 GB 10/100/1000BT Ethernet
- USB Ports
- 8 USB 2.0
- USB Hub Support
- Yes
- Operational Conditions
- Operating Temperature
- 14° to 140°F (-10° to 60°C)
- Humidity
- 20% to 80% non-condensing
- Storage Temperature
- –4° to 158°F (–20° to 70°C)
- Physical Characteristics
- Weight
- 7.0 lbs
- Weight
- 3.2 kgs
- Height
- 1.75 in
- Height
- 44.5 mm
- Width
- 17.25 in
- Width
- 438 mm
- Depth
- 9.5 in
- Depth
- 241 mm
- Miscellaneous
- Other supported accessories
- 1 full size SD card slot
Manuals
Brochures and Data Sheets
- Avocent® ACS 8000 Advanced Console Server Data Sheet
- Data Center Infrastructure Solutions-Channel Products Catalog VR-01407
- Vertiv™ Capabilities in a Network Closet Application Brief AV-11103
- Avocent® ACS 800 & 8000 Out of Band Management Cisco ISR 2900
- Avocent® ACS 8000 Serial Console Server Application Brief AV-49554
- Vertiv™ Avocent® DSView™ Providing Secure Remote Access Application Brief
- Avocent ACS 4 Reasons to Buy Data Sheet AV-12348
Software
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Frequently Asked Questions
The ACS 8000 family has variants that include 8, 16, 32, and 48 serial ports along with 8 multi-purpose USB 2.0 ports.
ACS Serial Consoles are equipped to support RS-232, RS-485, RS-422 protocols via RJ-45 and USB 2.0 on Type A connectors.
In-band and out-of-band access (with network failover) are supported via (2) Gigabit Ethernet interfaces, (2) Gigabit Fiber SFP ports, optional v.92 analog modem and/or external 4G/LTE cellular modem. The appliance provides a web-browser based GUI and local console port for CLI and Linux Shell commands.
Yes, the ACS 8000 automatically detects and supports Liebert GXT4 UPS systems, as well as, Rack PDUs from Vertiv/Liebert, ServerTech, ServerTech Pro, APC, Raritan and Eaton.
Users are authenticated using TACACS+, RADIUS, LDAP/AD or local authentication. The appliance also includes a built-in firewall with Access-Control Lists (ACLs).
