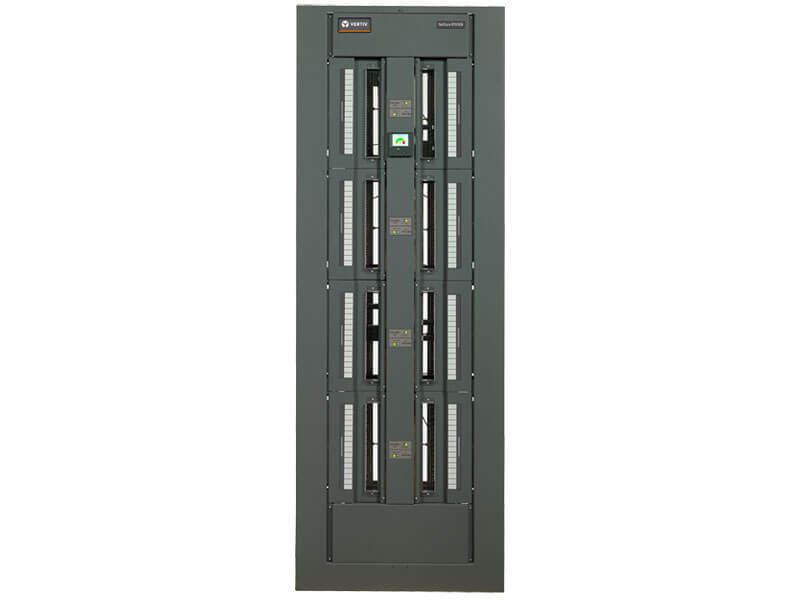

NetSure 8100DB (582140600)
The NetSure 8100DB distribution bay features high capacity, modularity, and simplified installation.
- Data Center/Colocation/Hosting
- Government
- Military, Defense, Aerospace and Missile
- Telecom
Benefits
Features
Specifications
- Product Overview
- Power Capacity
- 240 kW (8 load) or 180 kW (6 load)
- Current Capacity
- 4800 A (8 load) or 3600 A (6 load)
- System Type
- Distribution Bay
- Input
- Input Voltage, Nominal
- 48 VDC
- Input Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Access
- Top and bottom
- Output
- Output Voltage, Nominal
- 48 VDC
- Output Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Load Circuit Breakers / Fuses
- TPS/TLS, TPL, GMT Fuses or Bullet Circuit Breakers
- Physical Characteristics
- Weight
- 160 - 425
- Weight
- 73 - 193
- Height
- 84"
- Height
- 2134
- Width
- 26" or 30"
- Width
- 660 - 762
- Depth
- 16" or 24"
- Depth
- 406 -609
- Environmetal & Standard Compliance
- Control and Monitoring
- Digital metering with remote control over Modbus or SNMP
- Operating Temperature
- 0 °C to +40 °C (+32 °F to +104 °F)
- Safety Compliance
- NEBS level 3 compliance, meets or exceeds all relevant GR1089, GR63, UL, cUL specifications
