Vertiv™ Liebert® IntelliSlot™ Unity Communications Card
Provides Web access, environmental sensor data, and third-party customer protocols for Vertiv™ equipment. The cards employ Ethernet and RS-485 networks to monitor and manage a wide range of operating parameters, alarms and notifications. Provides a communication interface to Trellis™, LIFE™ Services, Liebert® Nform, and third-party building and network management applications.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Retail and Wholesale
- Telecom
Vertiv™ Liebert® IntelliSlot™ Unity Communications Card
Provides Web access, environmental sensor data, and third-party customer protocols for Vertiv™ equipment. The cards employ Ethernet and RS-485 networks to monitor and manage a wide range of operating parameters, alarms and notifications. Provides a communication interface to Trellis™, LIFE™ Services, Liebert® Nform, and third-party building and network management applications.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Retail and Wholesale
- Telecom
Specifications
Vertiv™ Liebert® IntelliSlot™ Unity Communications Interface Card provides Trellis™, LIFE™ Services and Liebert® Nform enablement as well as Web access, environmental sensor data, and third-party customer protocols for Vertiv equipment. The cards employ Ethernet and RS-485 networks to monitor and manage a wide range of operating parameters, alarms and notifications.
Liebert® IntelliSlot™ Unity Communications Interface Card provides Trellis, LIFE Services and Liebert Nform enablement as well as Web access, environmental sensor data, and third-party customer protocols for Vertiv equipment. The cards employ Ethernet and RS-485 networks to monitor and manage a wide range of operating parameters, alarms and notifications.
|
Vertiv™ Liebert® IS-Unity Communications Card
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Unity Communication Cards | IntelliSlot Port in device | Web (HTTP/HTTPS) | 7 to 12VDC; 3.6W maximum power consumption | RJ-45 10/100 Ethernet, RJ-45 RS-485, RJ-45 Sensor | 1.45 | 2.97 | 5.2 | 0.4 |
| See more product information |

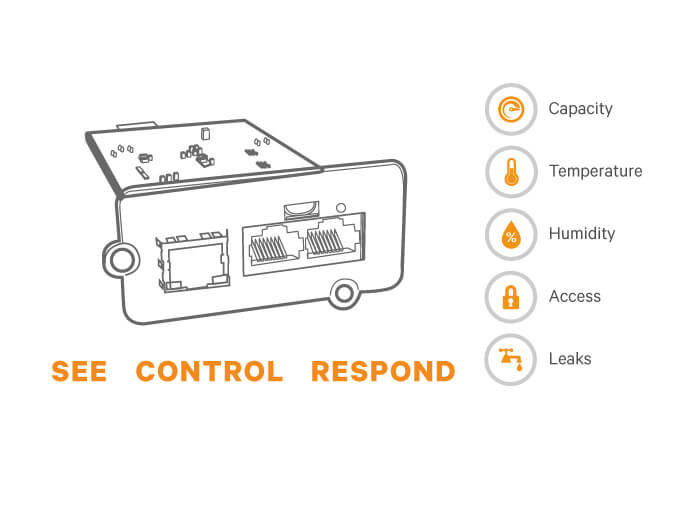

Benefits

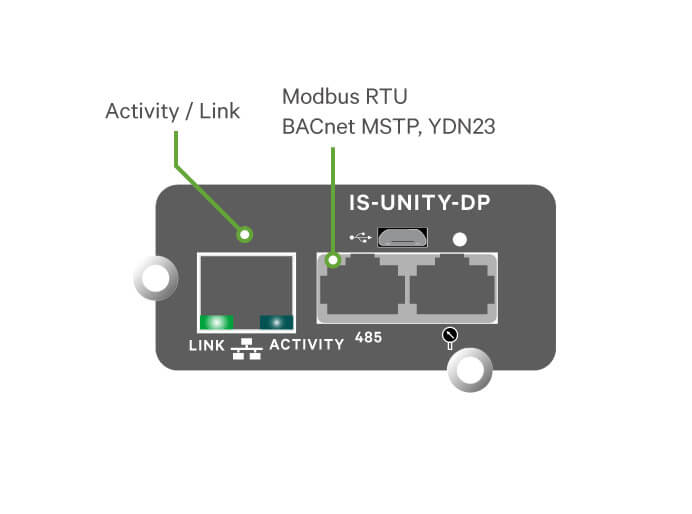

Features
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
Frequently Asked Questions
- Q
- Can I obtain a list of the supported SNMP Traps and parameters from the card?
- A
- Yes, once SNMP is enabled on the card the SNMP data available from the managed device is available on the Download menu display from the managed device tab. Consult the User Manual for more details.
- Q
- How many SNMP Trap targets can I configure in the Liebert IntelliSlot Unity Card?
- A
- 20
- Q
- Can I obtain a list of the supported Modbus and BACnet data from the card?
- A
- Yes, once Modbus and/or BACnet is enabled on the card the enabled protocol data available from the managed device is available on the Download menu display from the managed device tab. Consult the User Manual for more details.
- Q
- Is the Liebert® IntelliSlot Unity Card hot-swappable?
- A
- Yes, you will not be required to shutdown your equipment to install this card.
- Q
- What Vertiv products are supported by the IS-UNITY-DP and IS-UNITY-LIFE cards?
- A
- Most UPS and Thermal Management products - see the Unity User Manual for the complete list.
