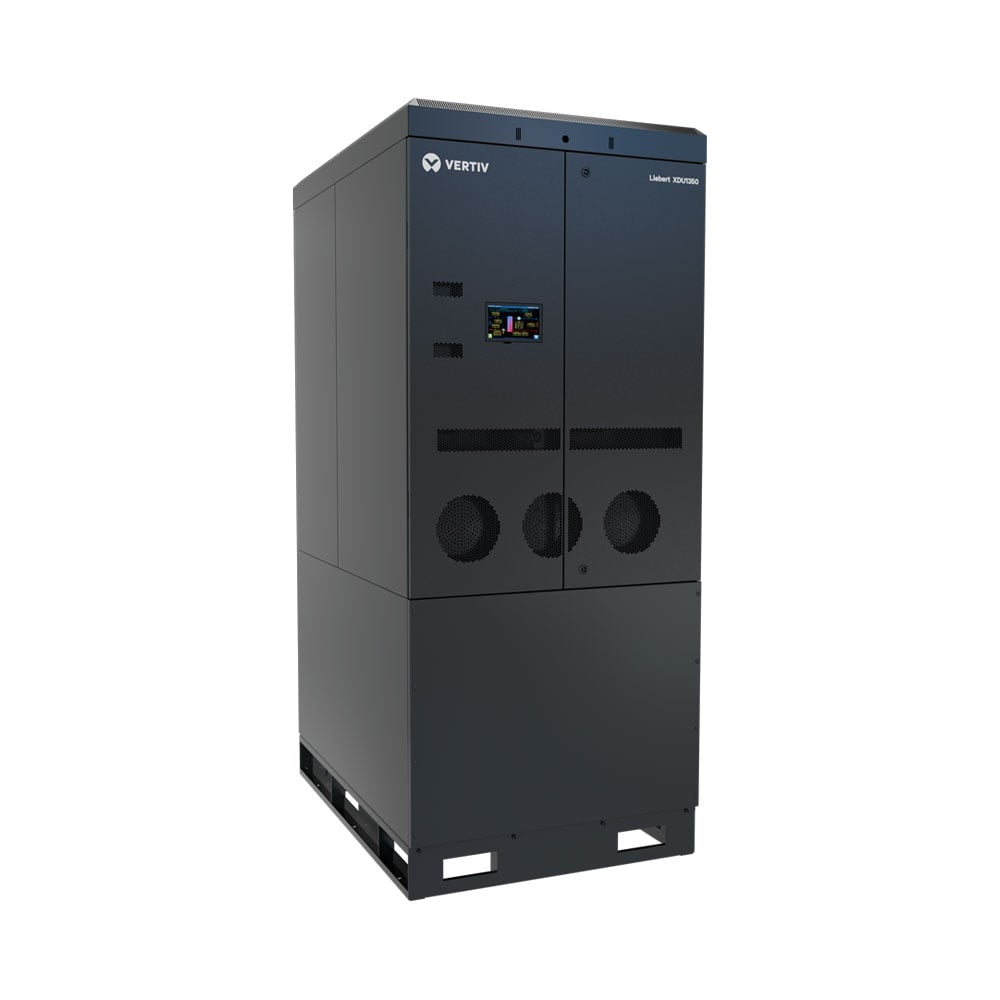

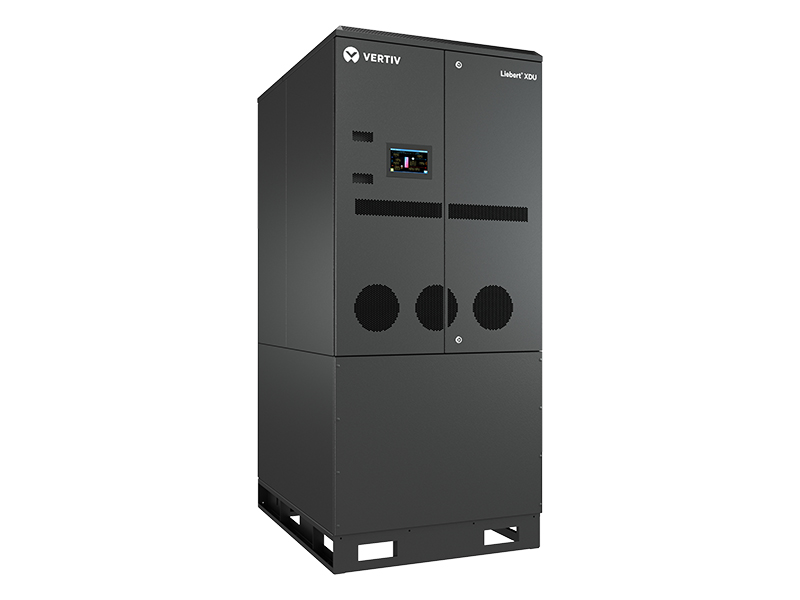

Liebert® XDU1350 Coolant Distribution Unit
Designed to remove barriers to liquid cooling in an air-cooled environment, the Liebert® XDU1350 Coolant Distribution Unit is liquid to liquid heat exchanger for chip & rear door cooling applications that offers easy, cost-effective deployment in any data center. The Liebert® XDU operates without facilities water, allowing you to tap into the benefits of water-cooled servers to more efficiently support higher rack densities without incurring the costs of major infrastructure changes.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Data Center/Colocation/Hosting
- Education
- Healthcare
- Government
- Retail and Wholesale
Liebert® XDU1350 Coolant Distribution Unit
Designed to remove barriers to liquid cooling in an air-cooled environment, the Liebert® XDU1350 Coolant Distribution Unit is liquid to liquid heat exchanger for chip & rear door cooling applications that offers easy, cost-effective deployment in any data center. The Liebert® XDU operates without facilities water, allowing you to tap into the benefits of water-cooled servers to more efficiently support higher rack densities without incurring the costs of major infrastructure changes.
- Data Center/Colocation/Hosting
- Education
- Healthcare
- Government
- Retail and Wholesale
Benefits
Features
Specifications
The Vertiv™ XDU delivers flexibility to support rear door heat exchangers or direct contact liquid cooling. The Vertiv XDU’s compact footprint allows for end of row or perimeter placement. However and wherever you incorporate the Vertiv XDU, you can easily distribute coolant to efficiently manage power-dense hot spots up to 1,368 KW. Redundant pumps and power inputs ensure the Vertiv XDU is always doing its job while smart settings and teaming options ensure the precise temperature, flow rate, and pressure are continuously maintained to cool your IT environment as effectively and efficiently as possible. The stainless-steel wetted material provides peace over corrosion concerns. A built-in 50-micro filtration unit works around the clock to keep the secondary fluid network free from debris and contaminants that could hinder performance. Remote Monitoring is available through HTTP, SNMP, RS-485 Modbus, Modbus IP communications. The integrated controller provides accurate performance setpoints, flow control and monitoring with integrated leak detection and operational alarm features to help maintain system and efficiency.
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
