Modelo do Produto
Garantia:
2 Years

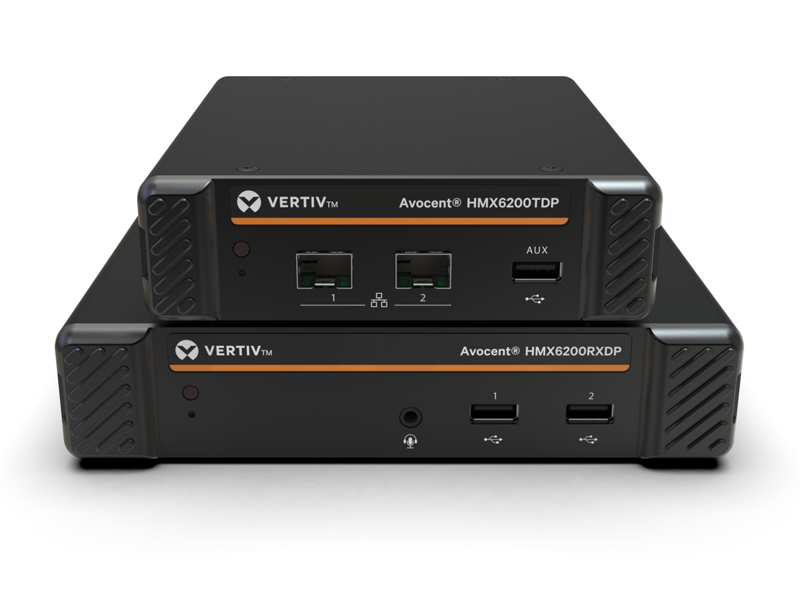

Avocent HMX 6210T High Performance KVM System
The Avocent HMX 6000 Series is an IP-based high performance KVM extender that forms part of the matrix solution. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, while maintaining a pixel perfect desktop experience.
Guadar este produto no seu dashboard
Você pode guardar este produto no seu dashboard para ve-lo depois. Você pode elimina-lo com facilidade do seu dashboard quando você já no quer ve-lo lá.
Please login or create an account to save this for later
Ideal para:
- Transmissão e Entretenimento
- Data Center/ Colocation / Hosting
- Setor de Saúde
- Telecomunicação
Modelo do Produto
Garantia:
2 Years
Avocent HMX 6210T High Performance KVM System
The Avocent HMX 6000 Series is an IP-based high performance KVM extender that forms part of the matrix solution. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, while maintaining a pixel perfect desktop experience.
Ideal para:
- Transmissão e Entretenimento
- Data Center/ Colocation / Hosting
- Setor de Saúde
- Telecomunicação
Vantagens
Truly unlimited extension distances - Extension distance is not limited to a single 100 meter cable length - If you need to
extend further, simply add a 1GbE network switch to achieve even greater distances.The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.
extend further, simply add a 1GbE network switch to achieve even greater distances.The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.
Single CATx cable or fiber for greater flexibility - This significant asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7.
Real time control with perfect digital video - Using a spatially-lossless encoding system, with 1:1 pixel mapping. The digital
video you receive is the same as the digital video leaving the remote computer.
video you receive is the same as the digital video leaving the remote computer.
Security - For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.
Recursos
USB 2.0 with Class Control
Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices.
Redundant Network Operation
The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure.
High Video Performance over VNC
The VNC server can be accessed by a standard web browser but for superior graphical performance, a Real VNC viewer should be used.
View 2560 x 1600 or two 1920 x 1200 sessions
Real VNC server with RFB 3.3 support
Up to 256bit AES and RSA 2048 encryption
VM support and RS232 for power control
Supports 16 users simultaneously
Out of band BIOS level access
Ideal for Control Rooms
Plug and play
100m extension distance on single Catx; unlimited using standard IP network
500m to 10km over fiber
Single link or single head configuration
Resolutions up to 2560x1600 @60hz
USB mass storage supported plus keyboard, mouse tablet and touch screen
Redundant network operation
Especificações
Avocent HMX 6210T High Performance KVM System
- VISÃO GERAL DO PRODUTO
- Tipo
- HPKVM
- Input Ports
- USB-B x 1
- Output Ports
- Speaker & Mic
- Video Connection
- 2 x DVI-D
- Video Resolution
- Up to 2560x1600
- MODO GRÁFICO
- Modem Interno
- No
- Suporte para Processador de Serviços
- No
- DESCRIÇÃO DE POTÊNCIA
- Fonte(s) de Alimentação
- Yes
- Potência de Entrada (Máxima)
- N/A
- INTERFACES/PORTAS
- Interfaces de Rede
- 2 x RJ45
- Portas USB
- 4 x USB type A
- Suporte a Hub USB
- USB 2.0 with Class Control
- CONDIÇÕES OPERACIONAIS
- Temperatura de Operação
- 0 to 40ºC / 32 to 104ºF
- Umidade
- 10% to 90% non-condensing
- Temperatura de Armazenamento
- -4° to 140° F (-20° to 60° C)
- CARACTERÍSTICAS FÍSICAS
- Peso (lbs / kgs)
- 2.7
- Peso (lbs / kgs)
- 1.1
- Altura (pol/mm)
- 1.76
- Altura (pol/mm)
- 44
- Largura (pol/mm)
- 7.92
- Largura (pol/mm)
- 198
- Profundidade (pol/mm)
- 6
- Profundidade (pol/mm)
- 150
- DIVERSOS
- Certificados de Aprovação
- CE, FCC, UL
Manuais
- Vertiv™ Avocent® HMX High Performance KVM Extender System Installer User Guide
- Vertiv™ Avocent® HMX High Performance KVM Extender System Quick Installation Guide
- Vertiv™ Avocent® HMX Advanced Manager Installer User Guide
- Vertiv™ Avocent® HMX 6200 HDMI HPKVM Transmitter Quick Installation Guide
- Vertiv™ Avocent® HMX DVI-D and LongView™ 5020 Rack Mount Installation Guide
- Vertiv™ Avocent® HMX Extender System 6200 DP and HDMI Transmitters Rack Mount Installation Guide
- Vertiv™ Avocent® HPKVM HMX 6200 DP Receiver and LongView™ 5500 5520 Rack Mount Installation Guide.pdf
- Vertiv™ Avocent® HMX 6200 DP Quick Installation Guide
Catálogos e folhas de dados
- Vertiv™ Avocent® HMX 5000 6000 & 8000 Data Sheet
- Vertiv™ Avocent® Broadcast Solutions Brochure AV-11104.pdf
- Data Center Infrastructure Solutions-Channel Products Catalog VR-01407
- Vertiv™ Avocent® HPKVM Enhanced Emergency Management Application Brief AV-11124.pdf
- Vertiv™ Avocent® USB6000 Data Sheet AV-11402
