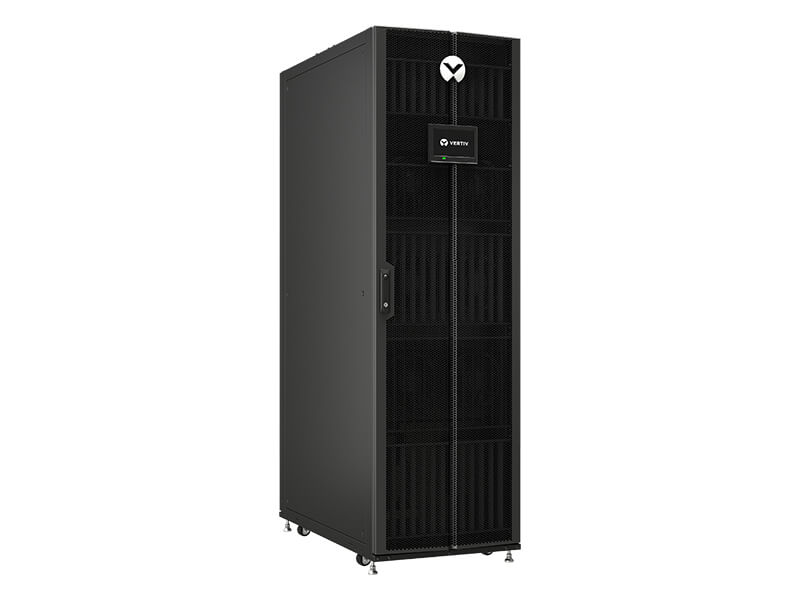

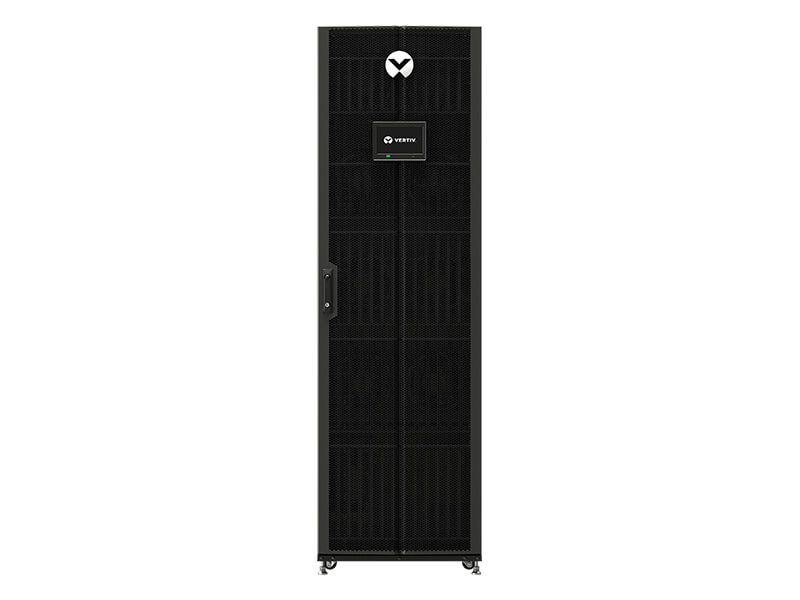

Liebert CRV, Row-based Cooling Unit

A self-contained data center cooling unit that is ideally suited and designed for cooling server rack cabinets in small and medium data centers. Liebert CRV features the iCOM Control and a digital scroll compressor, for high reliability and optimized data center heat management.​​​​​

Where to Buy Obter brochura Obter manual
Login to Save for Later
Especialmente adequado para:
  • Banking Financial and Insurance
  • Broadcast and Entertainment
  • Data CenterColocationHosting
  • Education
  • Government
  • Telecom

Liebert CRV uses environmentally-friendly R410A refrigerant, and is available in different versions, depending on data center design requirements: •10 and 20 kW Direct Expansion (DX) air cooled version, available in the 300 mm frame •23 and 36 kW Direct Expansion (DX) air/water cooled version, available in the 600 mm frame •38 and 57 kW Chilled Water (CW) cooled systems, available in the 300 mm frame •46 and 58 kW Chilled Water (CW) cooled systems, available in the 600 mm frame •50 or 60 Hz models

Vantagens

Flexibility
Horizontal airflow cooling design is suitable for non-raised or raised floors
Air, water, glycol and chilled water systems available
Adjustable airflow baffles maximize cooling to rack equipment, allowing the system to be positioned within the row or at the end of the row
Caster mounted for easy placement
Multiple units communicate with each other to improve system performance and reduce energy consumption
Up to 10 racks per cooling unit may be monitored to improve system performance and report rack temperatures
The iCOM large graphic display allows easy navigation and clear data display

Availability
Self-adapts to changing conditions to provide 24/7 precision environmental control: cooling, humidity control and air filtration
Liebert iCOMTM Control provides alerts for preventive maintenance before issues occur
Variable capacity scroll compressor adapts to load and eliminates compressor cycling, greatly increasing compressor life

Lowest Total Cost of Ownership
Designed for higher return air temperature to maximize cooling capacity
Only front and back access required, resulting in minimized installation and service time
Variable capacity scroll compressor and variable speed EC fans operate efficiently to reduce energy consumption

Ideally Suited For

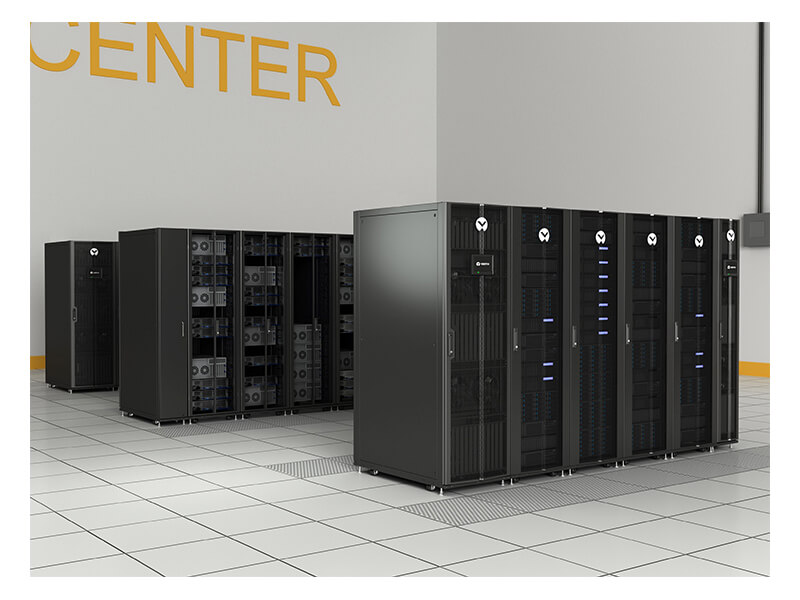

Small to medium-sized data centers cold/hot aisle configurations
Heat density up to 10 kW/rack without containment
Raised and non-raised floors
Rooms with a low ceiling where air cannot be ducted
Spot cooling in large data centers

Características

Features variable speed EC plug fans and variable capacity scroll compressor
Enlarged range available from 10 to 60 kW
Efficient operation with the iCOMTM Control. The large graphic display allows easy navigation and clear data display

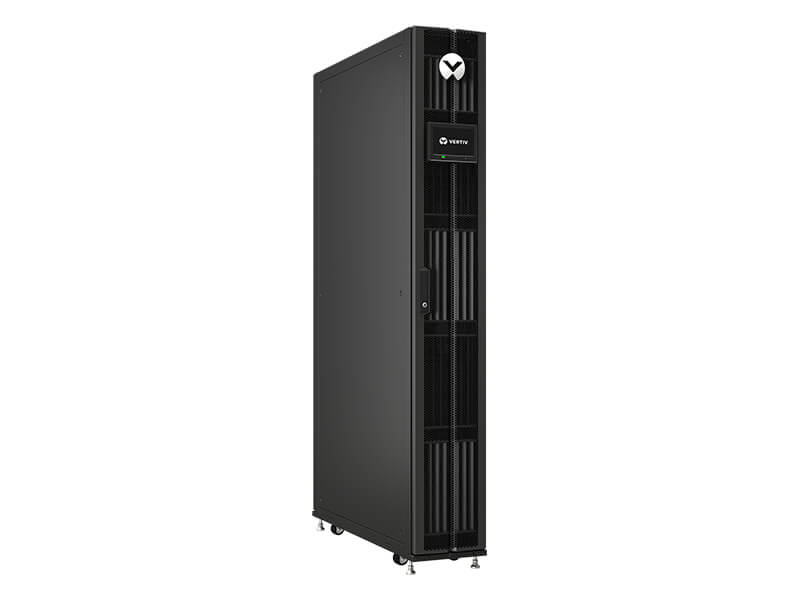

Includes a 300 mm space saving frame
Thermal management and humidity control

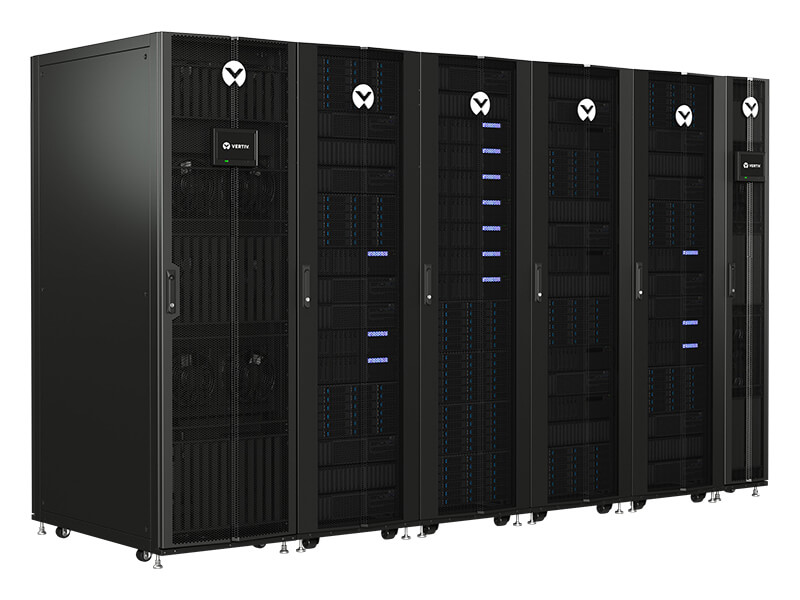

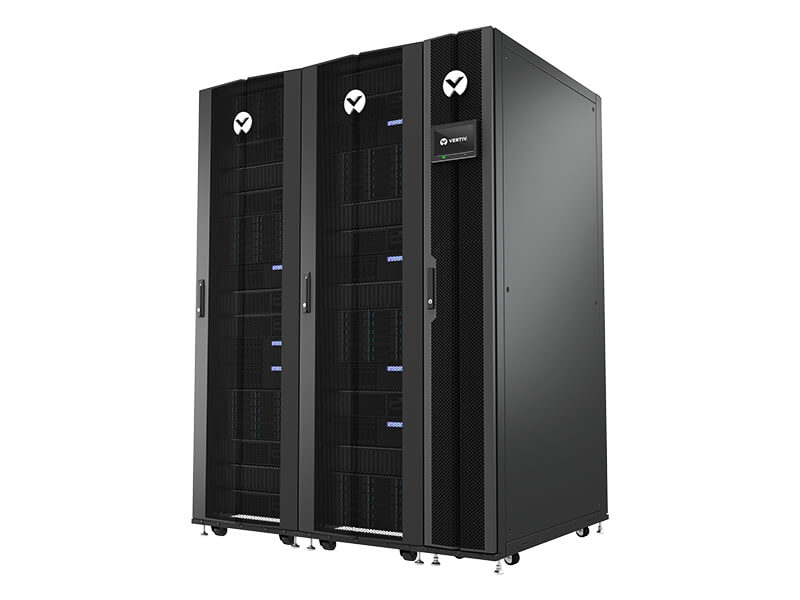

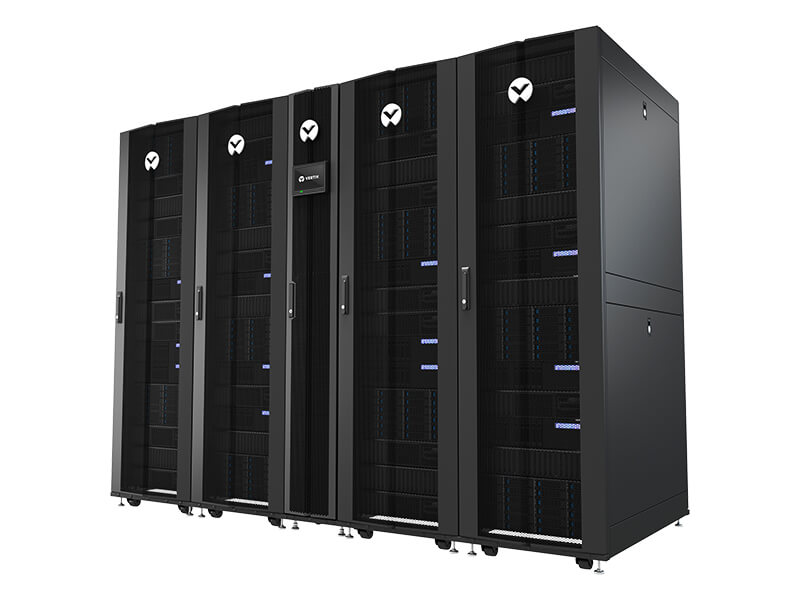

Installs within the row of racks
Low energy consumption
